1240 GAL WESTERN GLOBAL RT50TCG TRANSCUBE

Request a Quote Download Brochure

The TRANSCUBE™ RT50TCG Highway Trailer can turn your standard 1240 Gallon 50TCG into a fully mobile refueller.

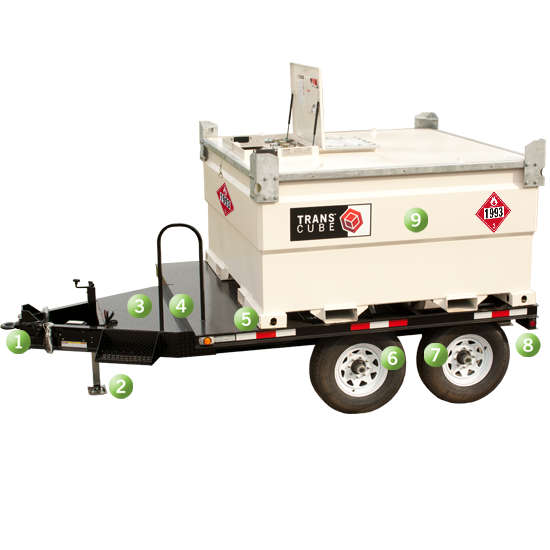

Product Highlights:

  1. Adjustable Eye/Ball Hitch
  2. Adjustable Jack Stand
  3. Anti-Slip Platform
  4. Safety Step & Handrail
  5. Tank Easily Detaches for Stationary Use
  6. Tortion Axels
  7. Electric Braking
  8. Highway Lighting
  9. Engineered for TRANSCUBE TCG Standard Fuel Tanks
  • Transportable. Full load lifting eyes, forklift pockets and internal baffles designed to allow handling of the tank full of fuel.
  • Accessible. Access manway for maintenance and inspection of inner tank. Removable inner tank for servicing and cleaning.
  • Efficient. ENVIROconnect Equipment Cabinet locks and secures equipment and fuel ports to run up to 3 pieces of diesel-powered equipment.
  • Environmentally Safe. Double-walled, 110% containment eliminates the need for spill pans, UL 142 approved.
  • Capacity: 1,240 Gallons
  • Dimensions (L x W x H): 180" x 96" x 71"
  • Weight: 4,600 lbs (Empty) / 13,259 lbs (Full)
  • Standard Fittings:3” Fill Point, 2” Fill Point, Gauge, Pressure Vacuum Vent, Breather Vent, 1 x ¾” Pump Feed, 1 x ½” Generator Feed & Return, 4 x 1½” Sockets, 1 x ½” Socket, Inspection Manhole, Pump Bracket.
  • UN/DOT (IBC Type 31A / Group Y DOT Performance Certification)
  • UL 142 Listed for Fuel Storage

Western International fuel tanks adhere to the highest environmental standards and are built to perform in any weather conditions. The weather-proof outer wall also acts as a secondary containment tank with 110% of the capacity of the primary container. This eliminates the need for messy drip containment pans that can lead to spills or ground contamination.
