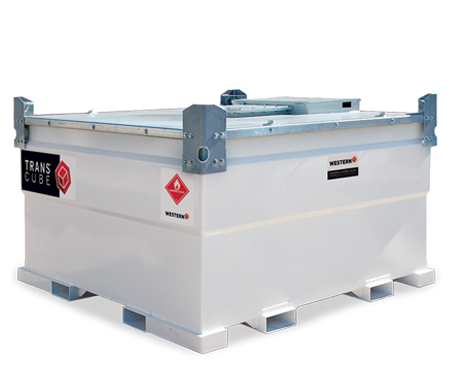

1240 GAL Western International TRANSCUBE 50TCG

Request a Quote Download Brochure

The TRANSCUBE™ 50TCG is a versatile fuel deployment solution for larger diesel-powered equipment. With 1,240 gallons of back up fuel, your need for fuel truck visits is decreased, which in turn helps you to lower your carbon footprint and your expenses!

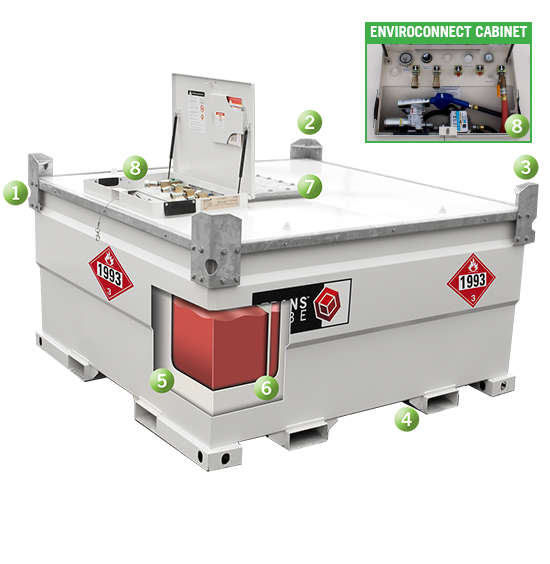

Product Highlights:

  1. Tie Down Points
  2. Full Load Lifting Eyes
  3. Secure Stacking Points
  4. Four-Way Fork Pockets
  5. Double-wall Construction
  6. Internal Baffles
  7. Manway Access
  8. Lockable Hatch Lid
  • Transportable. Full load lifting eyes, forklift pockets and internal baffles designed to allow handling of the tank full of fuel.
  • Stackable. Easily stackable (2)-high full of fuel and (3)-high empty to reduce storage space requirements.
  • Accessible. Access manway for maintenance and inspection of inner tank. Removable inner tank for servicing and cleaning.
  • Efficient. ENVIROconnect Equipment Cabinet locks and secures equipment and fuel ports to run up to 3 pieces of diesel-powered equipment.
  • Environmentally Safe. Double-walled, 110% containment eliminates the need for spill pans, UL 142 approved.
  • Capacity: 1,240 Gallons
  • Dimensions (L x W x H): 91" x 91" x 52"
  • Weight: 3,576 lbs (Empty) / 12,235 lbs (Full)
  • Standard Fittings:3” Fill Point, 2” Fill Point, Gauge, Pressure Vacuum Vent, Breather Vent, 1 x ¾” Pump Feed, 1 x ½” Generator Feed & Return, 4 x 1½” Sockets, 1 x ½” Socket, Inspection Manhole, Pump Bracket.
  • UN/DOT (IBC Type 31A / Group Y DOT Performance Certification)
  • UL 142 Listed for Fuel Storage
  • CAN/ULC-S601-07
  • Transport Canada Certified
  • NFPA 30A

Western International fuel tanks adhere to the highest environmental standards and are built to perform in any weather conditions. The weather-proof outer wall also acts as a secondary containment tank with 110% of the capacity of the primary container. This eliminates the need for messy drip containment pans that can lead to spills or ground contamination.
