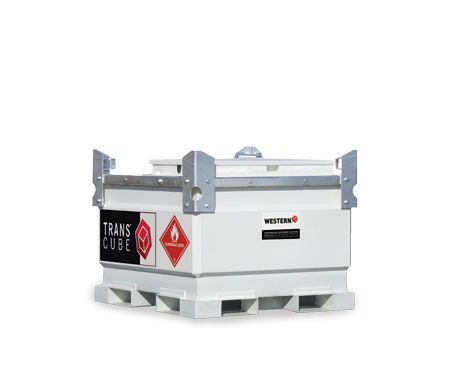

132 GAL Western International TRANSCUBE 05TCG

Request a Quote Download Brochure

The TRANSCUBE™ 05TCG is ideal for use in stand-by power applications and refueling for smaller equipment, such as industrial heaters, small generators, or lighting towers. With diesel ports to run three pieces of diesel-powered equipment, the 132 gallon TRANSCUBE 05TCG is prepared for your toughest jobsite application.

Product Highlights:

  1. Tie Down Points
  2. Full Load Lifting Eyes
  3. Secure Stacking Points
  4. Four-Way Fork Pockets
  5. Double-wall Construction
  6. Internal Baffles
  7. Manway Access
  8. Lockable Hatch Lid
  • Transportable. Full load lifting eyes, forklift pockets and internal baffles designed to allow handling of the tank full of fuel.
  • Stackable. Easily stackable (2)-high full of fuel and (3)-high empty to reduce storage space requirements.
  • Accessible. Access manway for maintenance and inspection of inner tank. Removable inner tank for servicing and cleaning.
  • Efficient. ENVIROconnect Equipment Cabinet locks and secures equipment and fuel ports to run up to 3 pieces of diesel-powered equipment.
  • Environmentally Safe. Double-walled, 110% containment eliminates the need for spill pans, UL 142 approved.
  • Capacity: 132 Gallons
  • Dimensions (L x W x H): 46" x 46" x 35"
  • Weight: 965 lbs (Empty) / 1,901 lbs (Full)
  • Standard Fittings:3” Fill Point, 2” Fill Point, Gauge, Pressure Vacuum Vent, Breather Vent, 1 x ¾” Pump Feed, 1 x ½” Generator Feed & Return, 4 x 1½” Sockets, 1 x ½” Socket, Inspection Manhole, Pump Bracket.
  • UN/DOT (IBC Type 31A / Group Y DOT Performance Certification)
  • UL 142 Listed for Fuel Storage
  • CAN/ULC-S601-07
  • Transport Canada Certified
  • NFPA 30A

Western International fuel tanks adhere to the highest environmental standards and are built to perform in any weather conditions. The weather-proof outer wall also acts as a secondary containment tank with 110% of the capacity of the primary container. This eliminates the need for messy drip containment pans that can lead to spills or ground contamination.
