500 GAL Western International FUELCUBE PLUS FCP500

Request a Quote

The FUELCUBE FCP500 is a compact, economic, double-walled 500 gallon fuel tank built to IBC specifications for the safe handling and transport of fuel. The FUELCUBE FCP500 can be directly connected to one diesel-powered machine while dispensing 500 gallons of fuel by manual or electric pump. Quickly and easily supply fuel where you need it, when you need it.

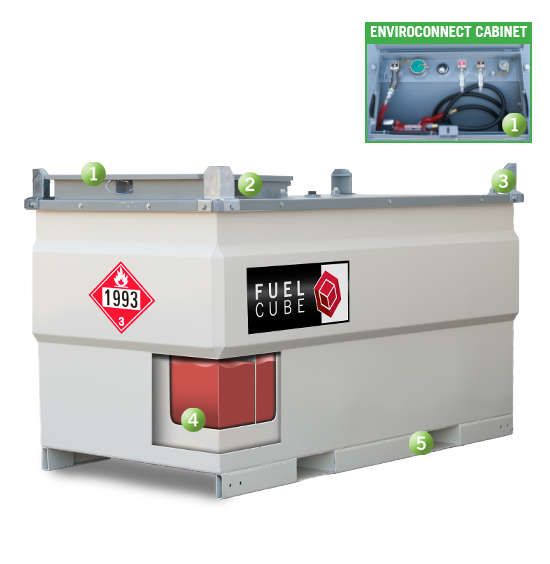

Product Highlights:

  1. Lockable Cabinet
  2. Letterbox-style Hose Access
  3. Stacking Points
  4. Double-walled
  5. Two-way Fork Pockets
  • Transportable. Forklift pockets and internal baffles designed to allow handling of the tank full of fuel (not DOT listed, but can be moved with diesel fuel).
  • Stackable. Easily stackable (2)-high empty to reduce storage space requirements.
  • Secure. Pumps and equipment enclosed in lockable area - no need for additional pump "Lock-Box."
  • Environmentally Safe. Double-walled, 110% containment eliminates the need for spill pans, UL 142 approved.
  • Capacity: 500 Gallons
  • Dimensions (L x W x H): 87" x 45" x 50"
  • Weight: 1,490 lbs (Empty) / 5,521 lbs (Full)
  • Standard Fittings:1” Pump Feed, Lockable Pump/Equipment Cabinet, Heavy Duty Skid Base, Dip Stick with Gallon and Inch Markings, Vent, Fill Cap, UL Plate, Durable Marine Grade Paint Specification, Stacking Brackets.
  • UL 142 Listed for Fuel Storage
  • NFPA 30A

Western International fuel tanks adhere to the highest environmental standards and are built to perform in any weather conditions. The weather-proof outer wall also acts as a secondary containment tank with 110% of the capacity of the primary container. This eliminates the need for messy drip containment pans that can lead to spills or ground contamination.
